Easy And Simple Foil Winding Machine With Copper Strip For Dry Transformer

Name: Easy And Simple Foil Winding Machine With Copper Strip For Dry Transformer
Brand: Zhutang
Price: 1 USD

Brand Name : Zhutang

Model Number : JJ-BRJ600-2

Certification : Main parts with CE

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 100 sets per year

Delivery Time : 40-45 days

Packaging Details : Seaworthy packing

Foil width : 600mm

Foil material : Cu or Al foil

Al foil thickness : 0.3-3.0mm

Cu foil thickness : 0.2-2.0mm

Application : Winding transformer coil

Control system : Based on PLC

Driving motor : 11kw

Color : customized

Contact Now

Easy And Simple Foil Winding Machine With Copper Strip For Dry Transformer

Description

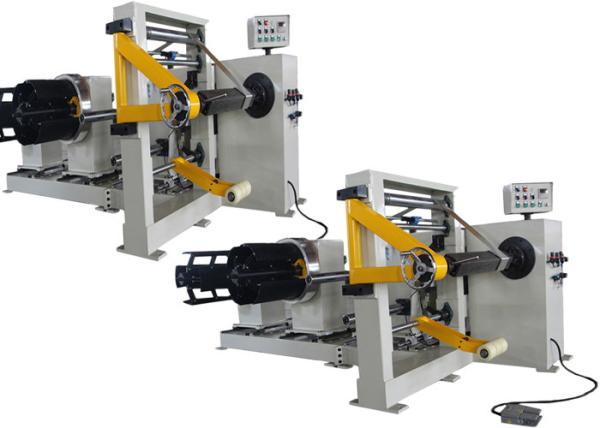

Easy And Simple Foil Winding Machine With Copper Strip For Dry Transformer JJ-BRJ600-2 is a simple winding equipment to wind transformer foil coil. This machine can wind one or two layers of foil with max width 600mm and one or two layers of insulation paper. The counter is used to count the number of turns wound. The foot pedal can be used to switch the rotation direction. Mechanical rectifying system is used to make the foil edge neat when winding. It is easy to operate.

Main Components

1. Main frame

2. Foil decoiler

3. Winding unit

4. Insulation decoiler

5. Pneumatic devices

6. Electrical control system

7. Rectifying system

Technical Parameters

Typical standard specifications of JJ-BRJ600-2 are shown below, however this can be easily modified as requested.

Max. Foil Material Width:	600 mm
Max. Rotating Diameter:	800 mm
Finished Coil Shape:	rectangular, oval and circle, etc.
Foil Material:	Copper or Aluminum
Al Foil Thickness:	0.3 - 3.0 mm
Cu Foil Thickness:	0.2 - 2.0 mm
Foil Material OD.:	1000 mm
Foil Material ID.:	500 mm
Foil Decoiler Number:	2 pcs
Foil Decoiler Length:	650 mm
Foil Decoiler Diameter:	adjustable range 400-520 mm
Max Coil Weight:	800 kg
Motor Power:	11kw
Rotating Speed:	0 - 26 rpm
Insulation Decoiler Number:	2 pcs
Insulation Material OD.:	≤ 400 mm
Insulation Material ID.:	76 mm
Insulation Material Width:	650 mm
Insulation Decoiler Shaft:	Expandable (pneumatic open/close action)
Counting Turn Range:	0 - 9999.9
